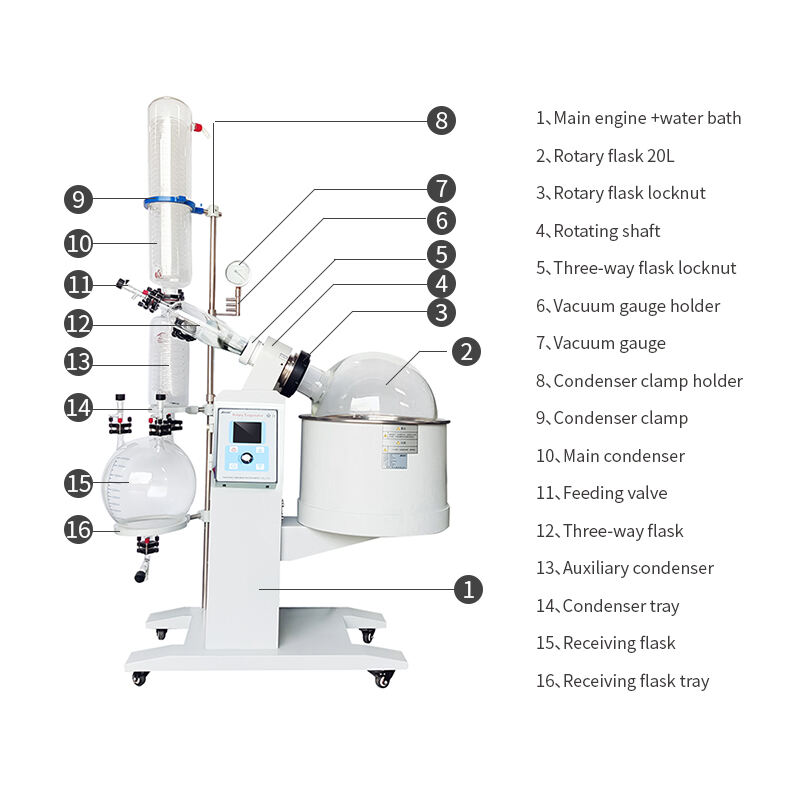

This system is targeted toward facilitating and expediting solvent evaporation by rotation. Its centerpiece is a rotating flask. In use, the flask spins at a regulated frequency, which allows for the liquid sample on the inner surface to eventually occupy an equal area.
Model |
XZ-5L |
Rotary flask |
Flange mouth Ø50 |
Receiving flask |
3L |
Rotation speed |
20-140rpm |
Rotary motor power |
250W |
Condenser pipe |
Vertical dual coil pipe |
Bath material |
Stainless steel |
Temperature range |
RT-100℃ |
Maximum vacuum degree |
-0.096Mpa |
Evaporative capacity |
Water ≥2L/h Alcohol ≥4L/h |
Lifting function |
Electric lifting |
Lifting stroke |
0-150mm |
Power supply |
220V/50Hz |
Overall power |
1.5Kw |
Dimension |
830×400×1100mm |
