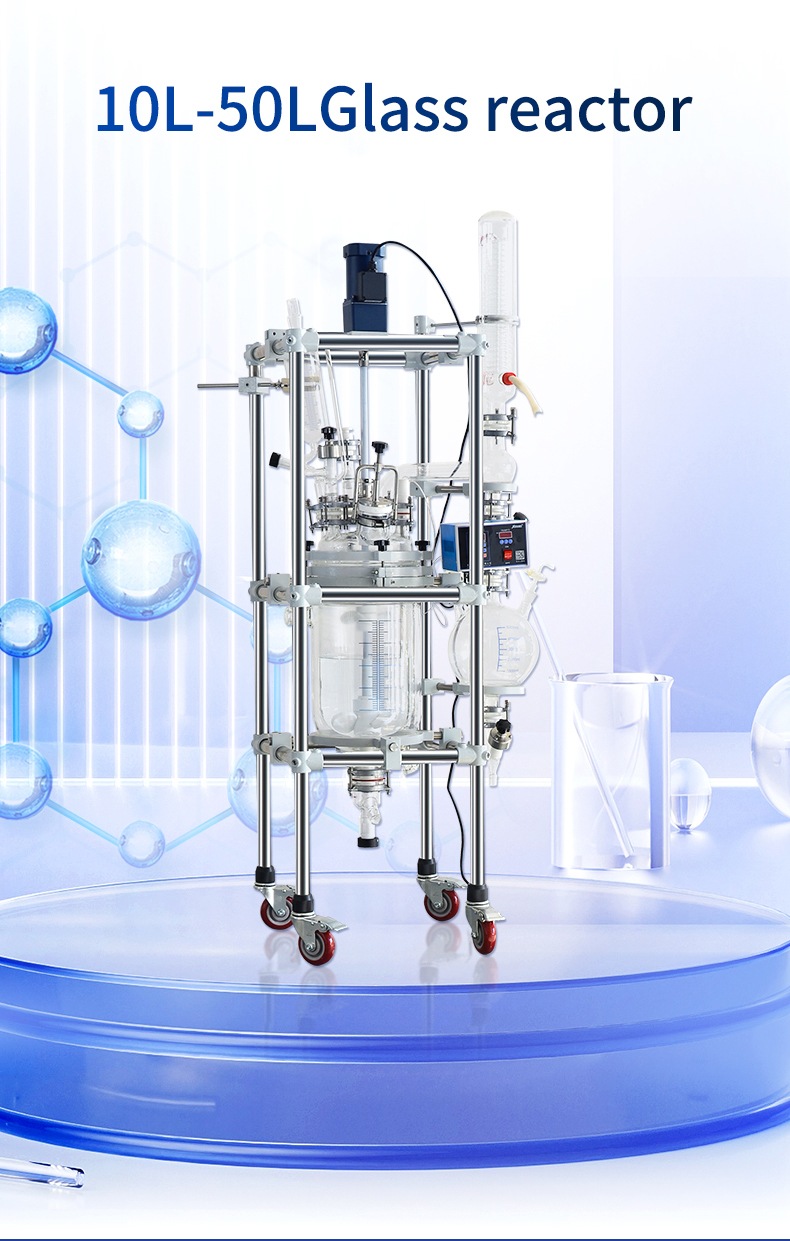

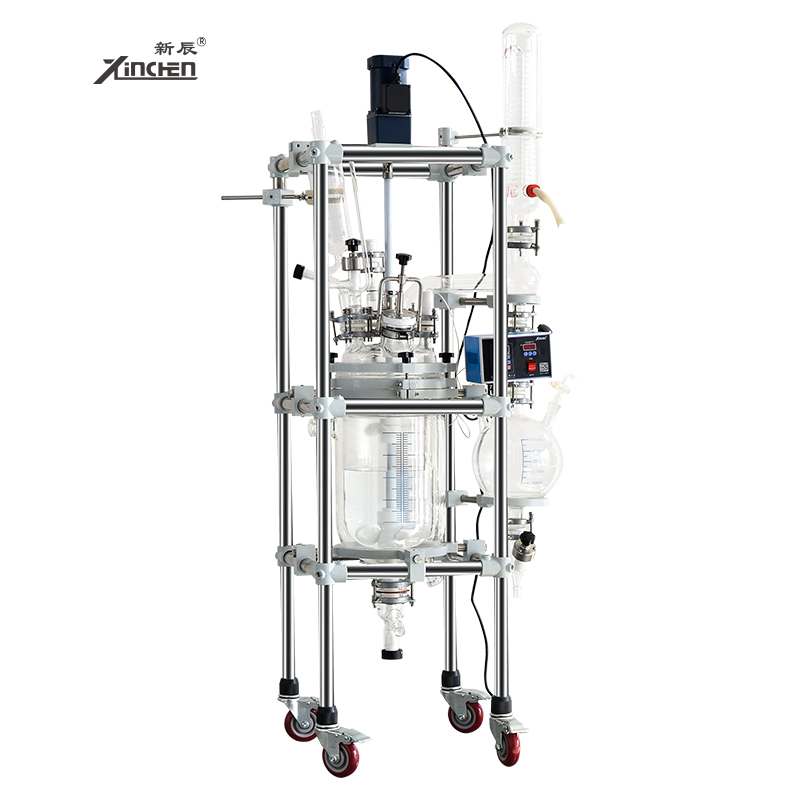

10-50L Glass reactor

The reactor is made of high-quality glass, is durable and corrosion resistant, ensuring long-term use. Perfect for labs and pilot-scale production, this system combines cutting-edge technology with simplicity.

Overview
Related Products


Glass reactor is commonly used in experiments and small batch production, the kettle body is made of high borosilicate glass, with stirring, heating and cooling, feeding and discharging, sealing and control system. When working, the temperature is controlled by heating or cooling medium, the stirrer mixes the reactants, the pressure is adjusted according to the demand, and the parameters are monitored by the control system. It is chemically stable, transparent and easy to observe, high temperature and corrosion resistant, easy to operate, safe and reliable. It is widely used in the fields of fine chemicals, biopharmaceuticals, new material synthesis, food and beverage, environmental protection and scientific research and teaching.


Specification

Model	XC-1L	XC-2L	XC-3L	XC-5L	XC-10L	XC-20L
Volume (L)	1	2	3	5	10	20
Jacket Volume (L)	0.3	0.6	0.9	1.5	3	6
Lid Diameter (mm)	150	150	150	180	265	265
External diameter of the inner vessel (mm)	113	135	150	180	230	290
External diameter of the outer vessel (mm)	150	180	200	230	290	330
Vessel height (mm)	250	280	300	400	450	550
Motor power (W)	90	90	90	120	120	140
Vacuum degree(Mpa)	0.096
Rotation Speed (rpm)	50-800	50-800	50-600	50-600	50-600	50-600
Torque (Ncm)	30	30	30	162	162	210
Dimensions(mm)	330350800	320350800	320350900	4504501100	5005001200	5005001450
Power	220V 50Hz

Model	XC-30L	XC-50L	XC-80L	XC-100L	XC-150L	XC-200L
Volume (L)	30	50	80	100	150	200
Jacket Volume (L)	10	16	24	30	45	60
Lid Diameter (mm)	265	265	340	340	340	340
External diameter of the inner vessel (mm)	330	365	410	460	550	600
External diameter of the outer vessel (mm)	365	410	460	500	600	650
Vessel height (mm)	730	850	950	950	980	1200
Motor power (W)	140	180	250	250	400	750
Vacuum degree(Mpa)	0.096
Rotation Speed (rpm)	50-600
Torque (Ncm)	210	300	350	350	400	400
Dimensions(mm)	5005001600	6006001800	7007002400	7007002600	8008002800	12009003200
Power	220V 50Hz

Specifications

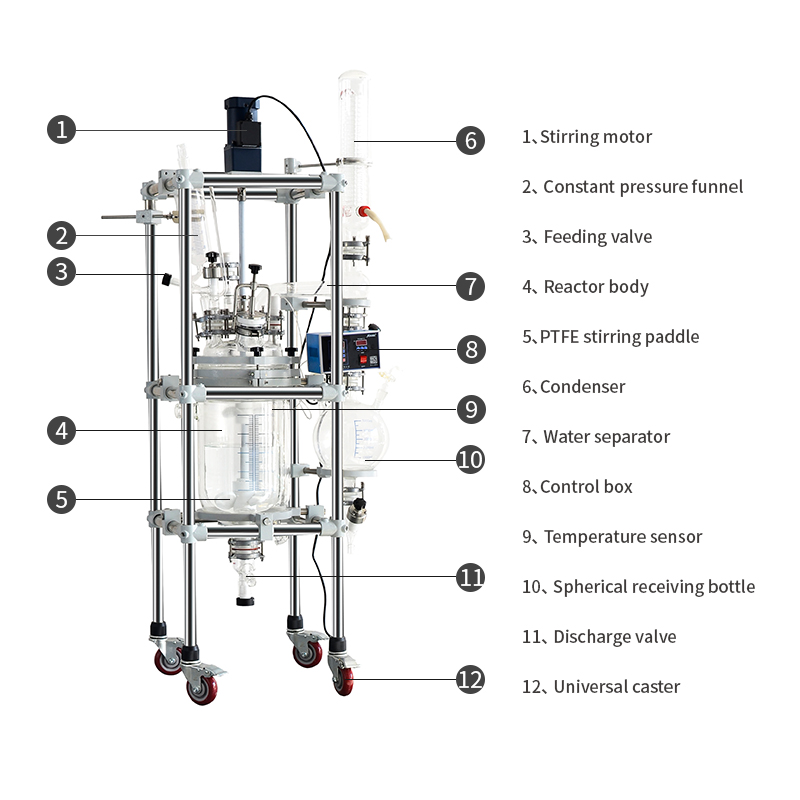

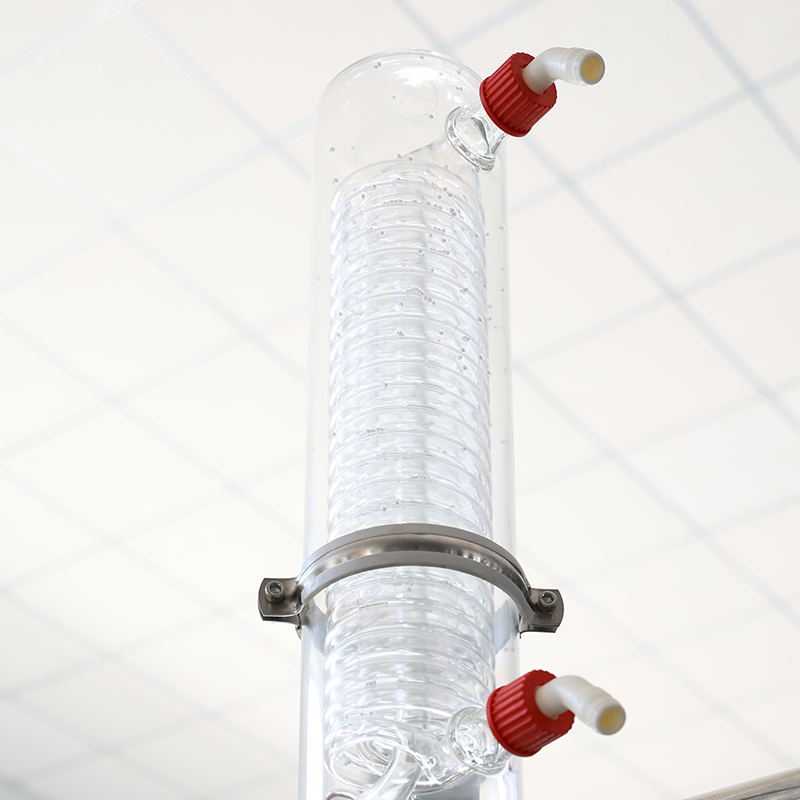

1.The whole stainless steel column, mobile framework, 4-6 or more covers of the reaction kettle, with full set of glass parts for reflux, adding liquid, temperature measurement, and so on.

2. Use G3.3 high borosilicate glass, with good chemial and physical properties.

3. Alloy steel mechanical seal, PTFE connector, to maintain a high precision seal in the working condition.

4. With PT100 sensor probe, high precision temperature measurement, small errors, high efficiency.

5. AC reducer motor, strong torsion, no noise.

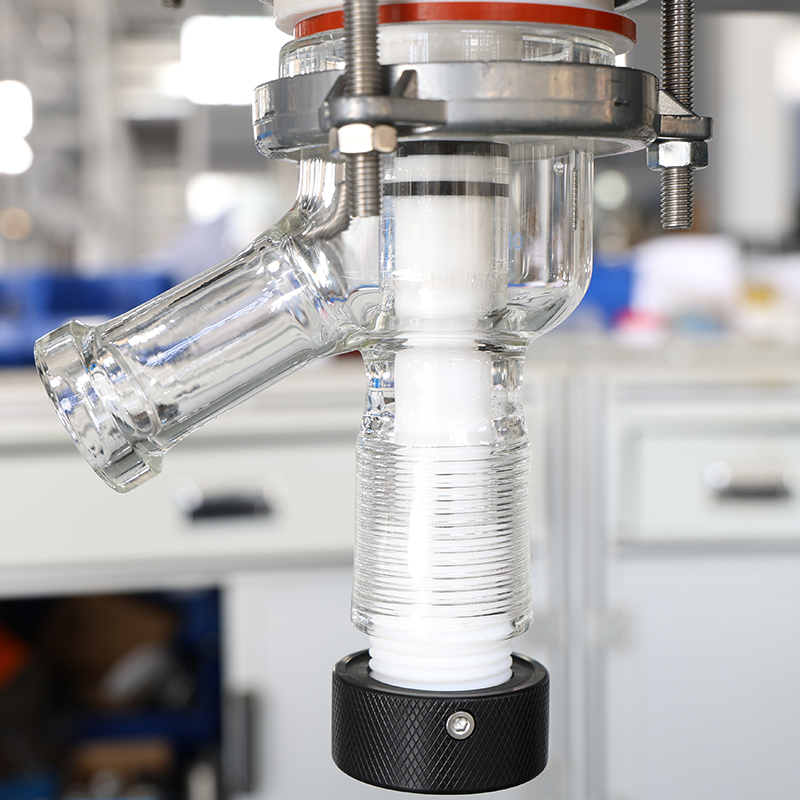

6. PTFE discharge value, moveable interface, discharging completely and quickly.

7. Our company can design special kettle boday structure according to customer requirements(such as PH meter, sand core filter etc)

8. All the reaction kettle can be made of explosion-proof device according to the customer request.(The explosion-proof device refers to the ex-proof motor + ex-proof control box + ex-proof temperature field display instrument).

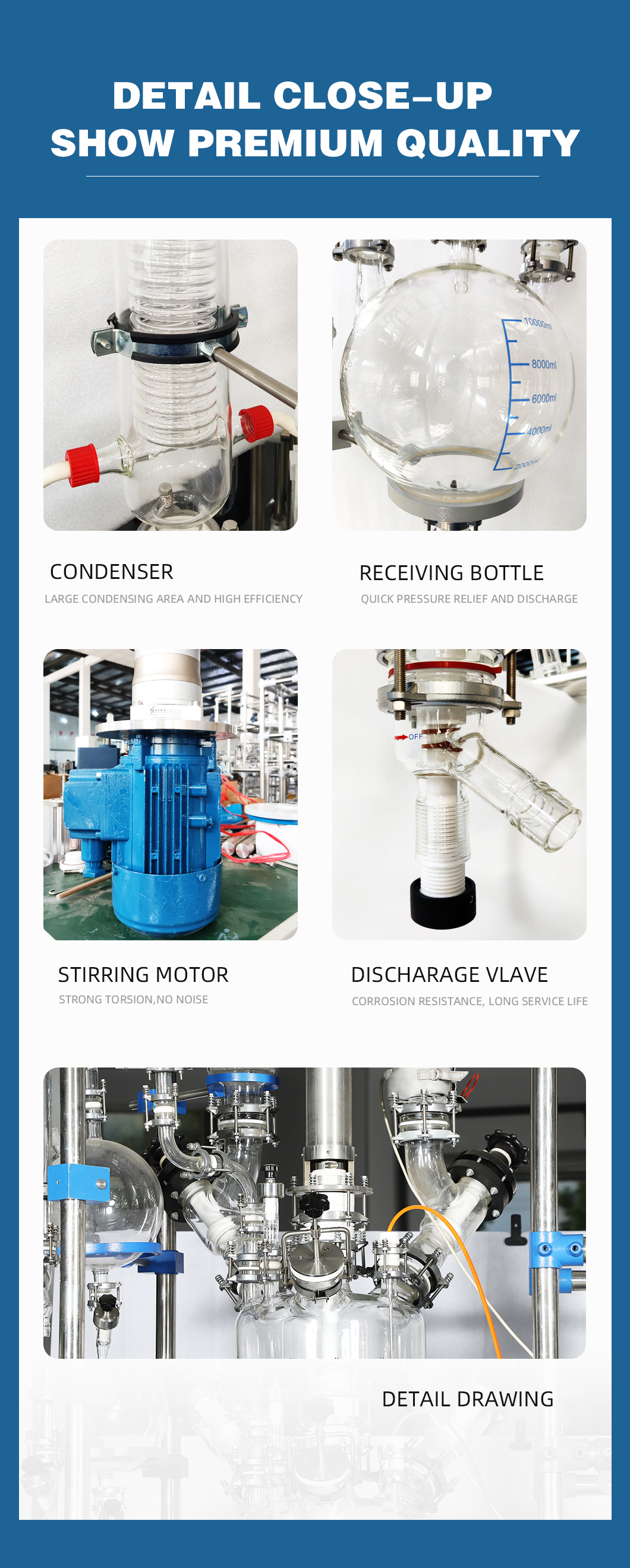

photobank (2).jpg

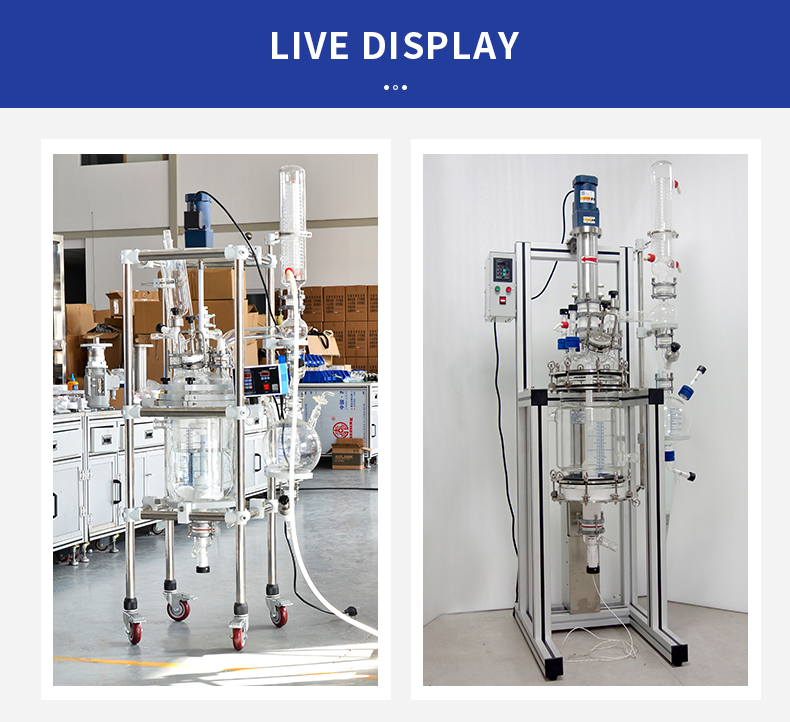

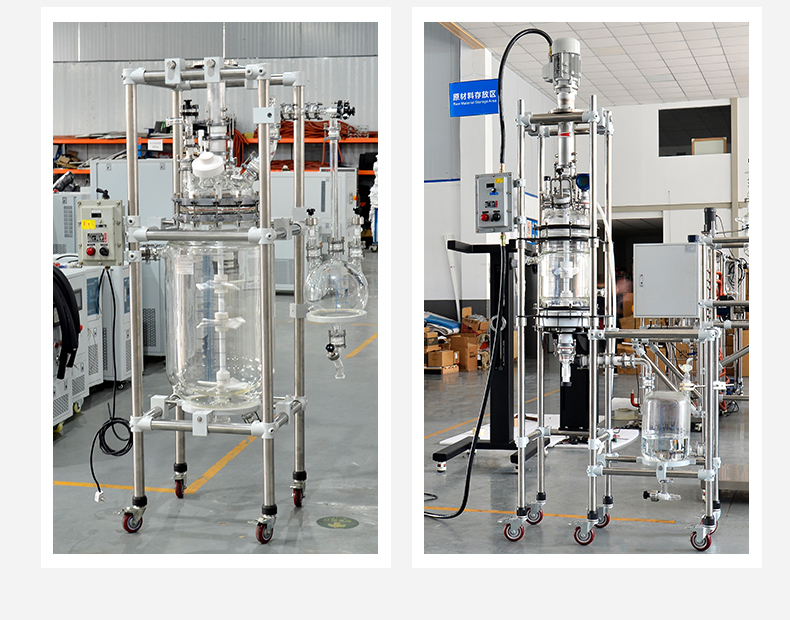

详情页--英文_05.jpg 详情页--英文_06.jpg

About Us


Packing & Delivery

1.Packing method: Standard export wooden box or base on your requests.2. Shipping method: By Express door to door, or by ship, based on your choice.
1) If delivery goods by Express, door to door service , generally about 5-7 working days reach.
2) If by air, deliver goods to your destination airport, about 5 working days reach.
3) If by sea, deliver goods to your local seaport, specific days and cost is based on different shipping line.
3. Warranty: Any broken or damages of equipment caused by delivery, will be afforded by Nanjing Ningkai company.
4.Our expectations: Every item in the process of transportation carries our sincere intentions. We deeply understand that logistics serves as a crucial link connecting you with the products you desire. Whether you are in a remote area or a bustling city, and whether facing adverse weather conditions or complex customs formalities, we will spare no effort to overcome difficulties, deliver the goods promptly, and bring you a convenient and worry-free shopping experience.
Shipping: By sea or by air as you wishes .( TNT , UPS , FedEx , EMS , DHL , SF or other logistics )
Certifications

photobank (10).jpg

FAQ

1.How long is the customization lead - time?
The delivery time is determined according to the complexity of the process. Under the condition of a simple process, delivery is generally made within two weeks.

2.How much is the customized price?
Our customized prices are mainly determined by the cost of raw materials, the complexity of the production process, and the uniqueness of your customization requirements. Since we are a factory at the source, we're open to price negotiations.

3.Do you have any certification certificates?
We have obtained the CE certification.

4.Will you provide operation training after purchase? And what are the training methods?
We offer user manuals and installation videos. Moreover, we can also provide on-site installation and testing services.

5.What's the warranty period of the equipment?
We offer a one-year free warranty.

6.What safety protection devices does the equipment have and what dangerous situations can they prevent?
Multiple safety protections are in place: automatic protection against over - temperature and over - pressure to prevent thermal run away and bursting; timely alarm and shutdown in case of leakage detection; an emergency stop button is provided; and there is also an explosion - proof device to ensure safe operation.
